SOURCES for MODELS, MATERIALS and DRAWINGS



Return to index page
















Edmunds Scientific supply parabolic reflectors made from polished 0.04 inch thick aluminium, suitable for using with Model Solar Dish/Stirling Engines can be obtained in the folowing sizes:

12 inch diameter 3 inch focal length 0.75 inch diameter center hole. (Stock No. #V53-875)
18 inch diameter 4.5 inch focal length 1.13 inch diameter center hole. (Stock No. #V80-254)
24 inch diameter 6 inch focal length 1.5 inch diameter center hole. (Stock No. #V53-876)

For details of prices etc goto Edmunds Scientific

 Click to return to top of page


Sterling Stirling

A range of stainless steel hot caps, tubing for heater tubes and shim for making regenerators can be obtained from Sterling Stirling. Also available is a selection of ready built model hot air engines.

 Click to return to top of page


Clarence Myers Supplies good quality castings and drawings to build the following scale model hot air engines:

  1. Quarter scale model of a 8 inch Rider Ericsson pumping engine.
  2. One eighth scale model of a 8 inch Rider Ericsson pumping engine.
  3. Essex ventilating fan.
  4. Quarter scale Heinrici type engine

For further details write to:

Myers Model Engine Works
15929 Five Point Road
Perrysburgh
OH 43551
USA

 Click to return to top of page


Brad Smith Supplies castings and drawings to build a very nice quarter scale model of a 1912 Bremen Caloric Engine.

For more information contact
Brad E Smith
7574 South 74th Street
Franklin
WI 53132
USA

 Click to download IMAGE or return to top of page


Paul Jacobs Supplies castings and all necessary materials to build a neat half size Lake Breeze fan

For more information contact:

Paul Jacobs
1745 Glastonberry
Toledo
Ohio 43613
USA

Some iformation on building this fan can be found at http://www.ultranet.com/~ginger/hotfan.htm

 Click to download IMAGE or return to top of page


The Stirling Outlet

Supply drawing and materials to build a 10 inch fan and a low Temperature engine.

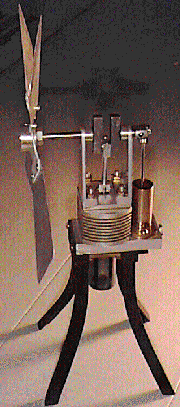

Myranda is a 10 inch Stirling powered fan. It will run at about 500 rpm, with about 20° pitch in the blades. This is enough to give a gentle breeze at a distance of 3 feet.

The machining is fairly easy and can be done on a 6 inch lathe and a drillpress. There is a small amount of brazing that is required also. This is on the hot end cylinder which is made up of three pieces and the upper leg braces. These pieces can be ordered pre-brazed and the legs pre-bent at the time of the kit purchase.

The kit comes complete with everything to build the fan including ball bearings for the crankshaft, and all of the necessary nuts and bolts. The easy to follow instruction manual contains many pictures of the machining and set up processes, and a detailed set of plans. Included with the plans is a full sized stick-on pattern of the five bladed fan hub, which will save much layout time. The only things not included are the fan shroud and a suitable burner. A small, 4 ounce alcohol lamp is enough to run the fan for approximately 6 hours.

These kits are supplied by

The Stirling Outlet
111 Selmser Avenue
Cloquet
MN 55720
USA

For more information go to The Stirling Outlet.com

 Click to download IMAGE or return to top of page


A. J. Reeves Supply drawing and castings to build a water cooled Heinrici Motor to a design by Edgar T. Westbury. This is a full scale replica of an original water cooled engine built by the German firm of L Heinrici. Inverted vertical type, 1" bore x 1 3/4" stroke on power cylinder, suitable for gas firing. length 8" height 20 3/4" width 8" Cylinders 1" bore x 1 3/4" stroke

Full construction details can be found in the Model Engineer volume 83.

This casting kit is supplied by

A J Reeves. Appleby Hill. Austry. Warwickshire. CV9 3 ER. UK
 Click to download IMAGE or return to top of page


Jerry Howell of Colorado Springs, Colorado, USA. supplies drawings for building model stirling engines. For more information and costs E-mail - jerryhowell@nail.com or goto http://www.jerry-howell.com

 Click to return to top of page


Mick Collins, in the UK, has a number of drawings for model Stirling engines which can be freely down loaded from his web site at http://www.btinternet.com/~sylvestris/stirling.htm

 Click to return to top of page


Alyn Foundry Supply castings for a half scale Robinson Hot Air engine.
For details of casting kits available email acme@random60.freeserve.co.uk
Or goto http://www.alynfndy.freeserve.co.uk/main.htm

 Click to download IMAGE or return to top of page


Camden Miniature Steam Services supply castings for a 3 inch scale Rider Ericsson pumping engine.
Email for further details and price. orders@camdenmin.demon.co.uk

 Click to return to top of page
